Denon DN-F20R


All, DN-F20R

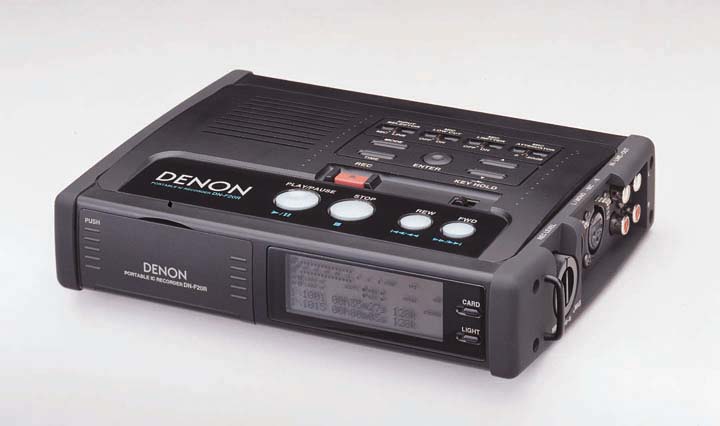

Denon DN-F20RProfessional solid-state recorder
Intro: 9/2000
Street: $1200
In: line/mic (XLR&RCA). Out: line (RCA), headphones (1/4" phone jack)208 x 42 x 161, 1.0Kg (w/o batt)


  • Unit has no uploading capability, but uses Compact Flash cards that can be attached to a computer.
  • Formats CF media as FAT filesystem which allows for it to be mounted as a volume on a PC.
  • Max quality/time: Linear (PCM) 48kHz / 90 min, with 2 x 512MB CF cards.
  • Accepts up to 512MB CF type 1 media
  • Supports MPEG 1 Layer 2 (@48kHz), MPEG 2 Layer 2 (@24kHz), as well as Linear PCM (.WAV) (@48kHz)
  • Selectable sampling rate of 24kHz or 48kHz
  • Selectable bit rate of 16kbps~128kbps per channel (MPEG mode) for best audio quality vs recording time
  • 2 memory card slots for extended Playback/Recording
  • Stereo or mono recording
  • Seamless continuous recording from bay 1->2 or 2->1
  • Up to 9,990 tracks can be saved within 10 sub folders
  • Back lit display
  • Built-in monitor speaker
  • Mic Limiter, attenuator and low cut filter switches
  • Stereo XLR Mic inputs
  • RCA inputs and outputs
  • H/P jack w/volume control
  • User adjustable menu
  • Runs on 6 AA batteries, or supplied AC adapter
  • Supplied with shoulder strap and soft cover case
  • Editing features: track divide (rehearsal mode with 0.05sec/0.024sec resolution), track erase, all erase.


Specs: Headphone amp: 12mW+12mW


User Manual: DN-F20R
