Marantz PMD670

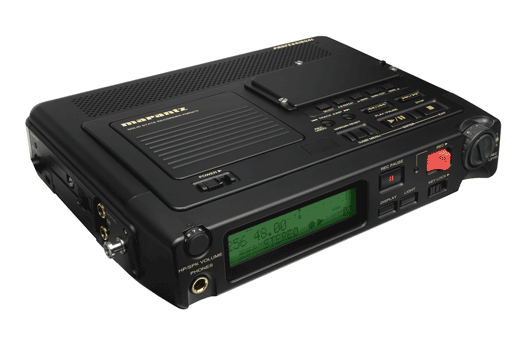

Marantz PMD670Professional solid-state recorder
Intro: 5/2003
Est: US$850
In: mic (XLR), line (RCA), digital (coax/RCA). Out: line (RCA), digital (coax/RCA), headphones. Data: USB, Remote control (2.5mm jack)


  • Accepts media in Compact Flash or IBM Microdrive up to 10gb ( when available ), allowing over 12 hours continious recording in uncompressed stereo WAV format, and much longer in compressed MP2 or MP3.
  • Records as WAV, Broadcast Wave, MP2 or MP3
  • Switcheable bitrate ( 16 to 384 kbps ) and sampling frequency ( 48, 44.1, 32, 24, 22.05, 16khz ) allows the user complete control over file sizes and audio quality.
  • USB port for direct high speed file transfer and software updating
  • Large LED screen shows a wide range of recording information
  • Lockable covers for setting selectors and media slot, allows pre-setup to leave users free to concentrate on recording without concerning themselves about complex settings.
  • Improved ergonomics for easier use in the field.
  • Digital input and output, XLR microphone inputs, unbalanced line input and output on cinch/rca.
  • Switcheable phantom power ( 48V )
  • Automatic and manual recording level control
  • Microphone filtering and limiter
  • Mark points during recording and playback
  • EDL playback modes
  • Built in condensor microphone and loudspeaker
