Otari Professional

Otari MR-10/10P

Otari MR-10
Otari MR-10P
Broadcast use MiniDisc Recorder/Player
Intro: 8

digital i/o: SPDIF Type 2, analog out: headphone.

Features: 16 LCD display. Auto monitoring, puts the MR-10 into monitor input mode unless the unit is in playing back. Next play mode, repeat play, mono/stereo switching, rehearse mode,

Links: Otari's information page for this unit.

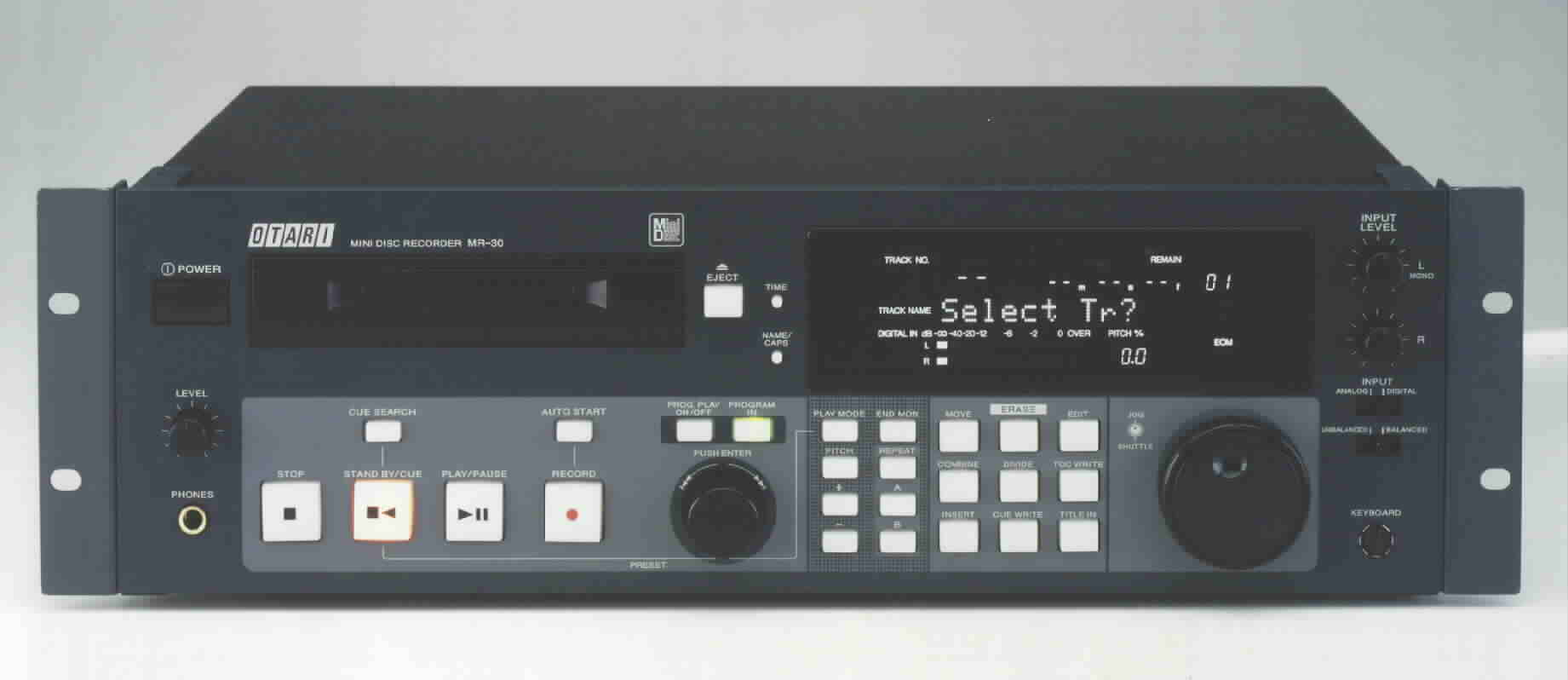

Otari MR-30

Otari MR-30Rack mount Pro MD deck
Intro: 2

IN: analog (XLR, RCA), digital (XLR, RCA). OUT: analog (XLR, RCA), digital (XLR, RCA). Headphones: 1/4" phone (20mW).3U Rackmount - 1 9" x 5.2" x 10.9" (w/o knobs, feet, connectors), 6.2kg

Features: Full featured pro deck. Synchro record start with settable start threshold. Varispeed control (+/-9%) can be written to the disc, Automatic cueing, Automatic and manual UTOC writing, Serial and parallel control interface. Up to 20 tracks settable for "hot start" (< 100ms latency). Optionally available sampling rate converter.

Links: Otari's page for the unit.

Specs: Playback: Freq. Resp.: 20-20kHz +/-1.0dB, SNR: > 92dB (@1kHz, 0dB, A-Wtd) Channel sep.: > 86dB (@1kHz, 0dB, A-Wtd) THD: < 0.012% (@1kHz, 0dB, A-Wtd) Record: Freq. Resp.: 20-20kHz +/-1.0dB, SNR: > 84dB (@1kHz, 0dB, A-Wtd) Channel sep.: > 80dB (@1kHz, 0dB, A-Wtd) THD: < 0.02% (@1kHz, 0dB, A-Wtd)
