MZ-R30 Portable MiniDisc Recorder

Operating instructions



WARNING
To prevent fire or shock hazard, do not expose the unit to rain or moisture.
To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only.

Caution
The use of optical instruments with this product will increase eye hazard.

For the customers in Canada
CAUTION:
TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

Information

IN NO EVENT SHALL SELLER BE LIABLE FOR ANY DIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY NATURE, OR LOSSES OR EXPENSES RESULTING FROM ANY DEFECTIVE PRODUCT OR THE USE OF ANY PRODUCT.

"MD WALKMAN" is a trademark of Sony Corporation.


Welcome!

Welcome to the world of the MiniDisc!
Here are some of the capabilities and features you'll discover with the new MiniDisc Recorder.


Table of contents

Recording an MD right away!

Playing an MD right away!

Various ways of recording

Two ways of connection to a sound source
Recording with digital input
. . . . To start/stop recording with the player (Synchro-recording)
Recording from a microphone
Recording in monaural for double the normal recording time of an MD
Adjusting the recording level (Manual recording)
Checking the remaining time or the recording position
Setting the clock to stamp the recorded time

Various ways of playback

Selecting the track number or track name directly
Playing tracks repeatedly
Emphasizing bass (DIGITAL MEGA BASS)
Protecting your hearing (AVLS)
Checking the remaining time or the playing position
Locking the controls

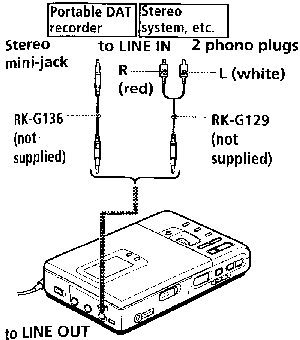

Connecting to a stereo system

Editing recorded tracks

Erasing tracks
. . . . To erase a track
. . . . To erase the whole disc
Adding a track mark
Erasing a track mark

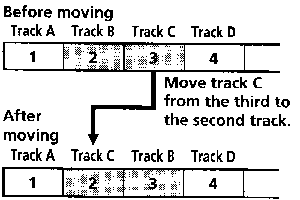

Moving recorded tracks
Labeling recordings

Power sources

Using on a lithium ion rechargeable battery
Using on dry batteries

Additional information

Precautions
Troubleshooting
System limitations
Error messages
Specifications
What is MD?

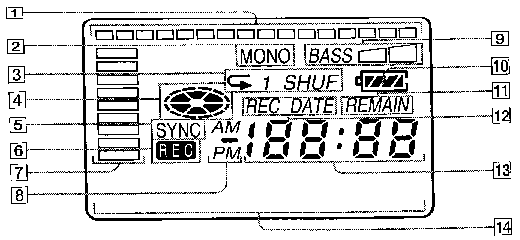

Looking at the controls


Recording an MD right away!

The source sound of CDs or tapes will be sent as an analog signal and recorded digitally. The recorded sound will be stereo. When you record from a digital source, see Recording with digital input.

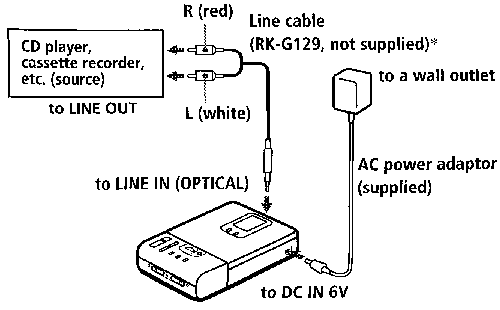

1. Make Connections


* Use the connecting cord without an attenuator. To connect to a portable CD player having a stereo mini-jack, use the RK-G136 connecting cord (not supplied).

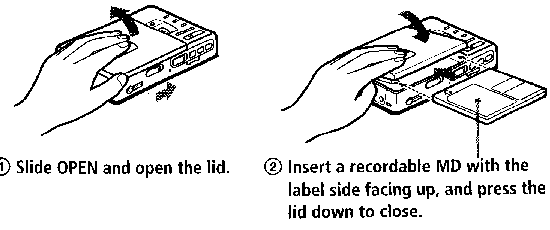

2. Insert a recordable MD

3. Record an MD

    1. Slide REC to the right while pressing its button
    "REC" lights up and recording starts.
    2. Play the CD or tape you want to record

To

    Press

Pause

    1)
    Press again to resume recording

Add recording to the end of the previous recording.

    END SEARCH and slide REC

Record over part way through the previous recording.

    , or to find the start point of recording and press

Remove the MD

    and open the lid. 2)

1) A new track is added at the point where you pressed pause, and the recording will be marked with the new track number when you resume recording.
2) Once you open the lid, the point to start recording will change to the beginning of the first track. When recording on a recorded MD, check the point to start recording on the display.

If the recording does not start

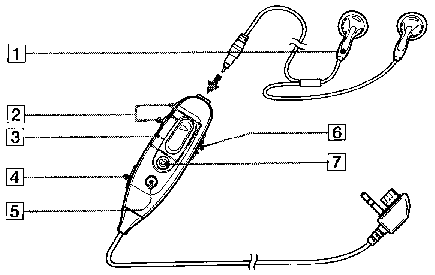

  • You can monitor the sound being recorded. Connect the supplied headphones with remote controller and adjust the volume by pressing VOLUME +/- (VOL +/- on the remote controller).Sound levels are copied onto the MD automatically and independently of the volume for monitoring.
For models supplied with the AC plug adaptor
If the AC power adaptor does not fit the wall outlet, use the AC plug adaptor
  • The level of the recorded sound is adjusted automatically

Playing an MD right away!

You can also use the rechargeable battery or dry batteries (Using on a lithium ion rechargeable battery, Using on dry batteries).

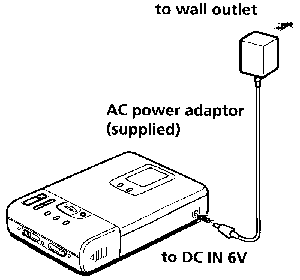

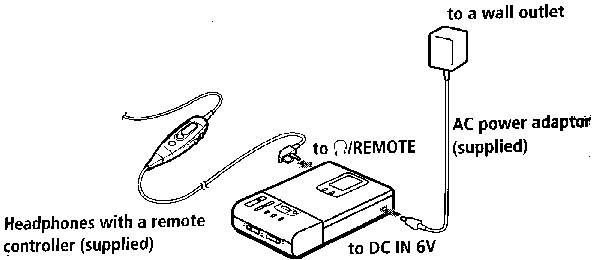

1. Make connections.

2. Insert MD.

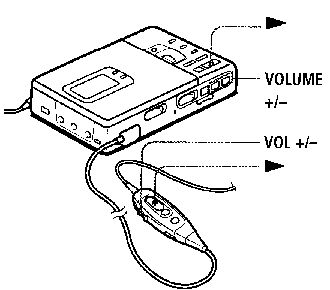

3. Play an MD.

  1. Press .
    A short beep sound in the headphones
  2. Press VOLUME +/- adjust the volume.
    You can check the volume in the display
  3. To stop play, press
    A long beep sounds in the headphones

To

    Press (Beeps in the headphones)

Pause

    (Continuous short beeps)
    Press again to resume play

Find the beginning of the current track

    once (Three short beeps)

Find the beginning of the next track

    once (Two short beeps)

Go backwards while playing 1)

    keep pressing

Go forward while playing 1)

    keep pressing

Remove the MD

    and open the lid 2)

1) To go backward or forward quickly without listening, press and keep pressing or .
2) Once you open the lid, the point to start play will change to the beginning of the first track.

If the play does not start
Make sure the recorder is not locked ( Locking the controls )

    The recorder automatically switches to play the stereo or monaural sound according to the recorded sound

Various ways of recording

Two ways of connection to a sound source

The input jack of this recorder works as both digital and analog input jack. Connect the recorder to a CD player or a cassette recorder using either digital input or analog input. To record, see Recording with digital input to record using digital input, and Recording an MD right away! to record using analog input.

            Input

Difference (connection)

Digital Input Line (analog) Input
Connectable source Equipment with an optical digital output jack Equipment with an analog (line) output jack
Usable cord Digital cable (with an optical or an optical or an optical-mini plug) Line cable (with 2 phono plugs or a stereo-mini plug)
Signal from the source Digital Analog
Even when a digital source (such as a CD) is connected, the signal sent to the recorder is analog.
Recorded track numbers Marked (copied) automatically
  • at the same position as the source.
  • when the recorder is paused while recording.
  • Marked
    • after more than 2 seconds of silence
    • when the recorder is paused while recording.

    You can erase unnecessary marks after recording (Erasing a track mark)

    Recorded sound level Same as the source Adjusted automatically. Can also be adjusted manually (Adjusting the recording level)

    Note
    Track marks may be copied incorrectly:

    Recording with digital input

    This unit has a built-in sampling rate converter so that you can record programs from digital equipment using other sampling rates, such as a BS tuner or a DAT deck.

    Insert a recordable MD and start recording.
    To record, see Recording an MD right away!. To record from a portable CD player, set the CD player to pause and then start recording.

    LINE IN (OPTICAL) jack is for both digital and analog input.
    The recorder automatically recognizes the line cable and switches to digital or analog input.

    Notes

    To start/stop recording with the player (Synchro-recording)

    You can easily make digital recordings of a digital source on an MD. Before synchro-recording, make connections to the digital source with a digital cable and the power source, and insert a recordable MD.

    1. Slide SYNCHRO REC to ON. "SYNC" appears in the display.
    2. Slide REC to the right while pressing its button. The recorder stands by for recording. Play the source sound. The recorder starts recording when it receives the playing sound.

    To stop recording, press.

    When there is no sound from the layer more than 3 seconds during synchro-recording, the recorder stands by for recording automatically. When the sound comes from the player again, the recorder starts synchro-recording again.

    Notes

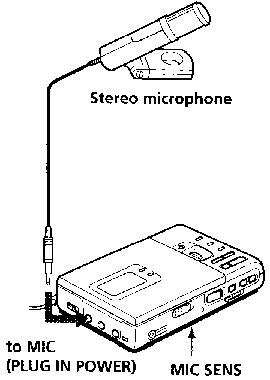

    Recording from a microphone

    Connect a stereo microphone ECM-909A, ECM-MS907, ECM-717, etc., (not supplied) to the MIC(PLUG IN POWER) jack.

      1. Select the input level with MIC SENS (on the bottom of the recorder). Usually, set it to HIGH. When you record loud sound such as a live concert, set it to LOW.
      2. Insert a recordable MD and start recording.
        Slide REC to the right while pressing its button.
        "REC" lights up and recording starts. For details, see Recording an MD right away!.

      Note
      To record from a microphone, you must first disconnect any digital source. If connected, the recorder will not switch to microphone input.

    Recording in monaural for double the normal recording time of an MD

    For longer recordings, choose to record in monaural sound. The recording time becomes double the normal.

      1. While pressing , slide REC to the right.
        The recorder stands by for recording.
      2. Press MODE.
        "Mono REC" appears in the display, and the recorder switches to monaural recording.
        Press MODE again to record in stereo sound.
      3. Press again to start recording.
      4. Play the sound source.

    To stop recording, press .
    The recorder switches back to stereo recording when you record the next time.

    Notes

    Adjusting the recording level (Manual recording)

    When you record with an analog input, the sound level is adjusted automatically. If necessary, you can set the level manually.

    1. .
    2. While holding down, hold REC to the right for more than 2 seconds. "ManualREC" appears and the recorder stands by for recording. To return to the automatic control, while the recorder is in record pause mode, hold REC to the right for more than 2 seconds.
    3. Play the source.
    4. .
      • While observing the level meter in the display, adjust the recording level by pressing (+) or (-).
        Set the level so that it hits the second indicator from the top when the recorder receives the maximum sound.

        Note
        The recording level should be adjusted while the recorder is in standby mode. You cannot adjust it while recording.

    5. Press again to start recording.

    To stop recording, press .
    The recording level control is switched back to automatic control.

    When you record with microphone input, select the input level with MIC SENS .

    Checking the remaining time or the recording position

    1. Press DISPLAY while recording or in stop mode. Each time you press the button, the display changes as follows.

    While recording
    A B
    Elapsed time Track number
    Remaining time for recording Track number
    Current time 1) Current date1)

    1) Appears only when the clock is set.

      In stop mode

      A B
      Elapsed time Track number
      Remaining time for recording Track name 1)
      Remaining time after the current location Disc name 1)
      Current time3) Current date 3)

      1) The number of the track appears when the track has no name.
      2) Remaining number of tracks appears when the MD has no disc name.
      3) Appears only when the clock is set.

    To know the recording conditions
    The record indicator lights up or flashes according to the recording condition.

    Recording condition Record indicator
    While recording lights up
    flashes according to the loudness of the source while recording with a microphone (voice mirror)
    Recording standby flashes
    Less than 3 minutes recording time available slowly flashes

    If you want to check the playing position or track name while playing, see Checking the remaining time or the playing position.

    Setting the clock to stamp the recorded time

    To stamp the date and time on the MD when you record, you first need to set the clock. When you use the recorder for the first time or after a long period of disuse, charge the built-in battery for the clock after setting the clock.

    1. Connect the power source. Use the supplied AC power adaptor.
      • Press CLOCK SET at the bottom of the recorder.
        Use a pointed object.
        The digits of the year flash.

    2. Enter the current year by pressing or . To change the digits rapidly, keep pressing or .
    3. Press . The digit of the month flashes.
    4. Repeat steps 3 and 4 to enter the current month, date, hour and minute. When you press to set the minute, the clock starts operating.

    If you make a mistake while setting the clock
    Press , and set the clock again from step 2. You can skip a set by pressing .

    To display the current time
    When the recorder is not operation or while recording, press DISPLAY repeatedly until the current time appears in the display.

    To display the time in the 24-hour system
    While setting the clock, press DISPLAY. To display the time in the 12-hour system, press DISPLAY again.

    Charging the built-in battery for the clock
    After setting the clock, leave the recorder connected to the AC power for about 2 hours to charge the built-in battery for the clock. Once charged, the built-in battery should last about a month without connecting to any of the power sources. The recorder will automatically charge the built-in battery while connected to AC power, dry batteries or a rechargeable battery.

    Various ways of playback

    Selecting the track number or track name directly

    You can select the desired track directly by using the vertical jog dial.

    1. .
      • Rotate the jog dial to select a track, and press it to play the selected track.

        When you rotate the jog dial, the track name* appears in the display. To play the selected track, press the jog dial.
        * If the track has no name, only the track number appears in the display.

    If you select a track in shuffle play mode, shuffle play starts from the selected track.

    Playing tracks repeatedly

    You can play tracks repeatedly in three ways - all repeat, single repeat and shuffle repeat.

    1. Press MODE while the recorder is playing an MD.
      Each time you press MODE, the play mode indication changes as follows.
    Indication Play mode
    none (normal play) All the tracks are played once.
    "" (all repeat) All the tracks are played repeatedly.
    "1" (single repeat) A single track is played repeatedly.
    "SHUF" (shuffle repeat)

    All the tracks are played repeatedly in random order

    Emphasizing bass (DIGITAL MEGA BASS)

    Mega Bass function intensifies low frequency sound for richer quality audio reproduction. It affects only with the headphones.

    1. Press DIGITAL MEGA BASS.
      Each time you press DIGITAL MEGA BASS, the Mega Bass indication changes as follows.
    Indication Play mode
    none Normal play
    "BASS " Mega Bass (slight effect)
    "BASS " Mega Bass (strong effect)

    Notes

    Protecting your hearing (AVLS)

    The AVLS (Automatic Volume Limiter System) function keeps down the maximum volume to protect your ears.

    1. Set AVLS at the bottom of the recorder to LIMIT.
      When you try to turn the volume, "AVLS" appears in the display. The volume is kept at a moderate level.

    Checking the remaining time or the playing position

    1. Press DISPLAY while playing.
      Each time you press DISPLAY, the display changes as follows.

    A B
    Elapsed time Track number
    Remaining time for recording Track name 1)
    Remaining time after the current location Disc name 1)
    Current time3) Current date 3)

    1) The number of the track appears when the track has no name.
    2) Remaining number of tracks appears when the MD has no disc name.
    3) Appears only when the clock is set.

    If you want to check the remaining time or the recording position while recording or in stop mode, see Checking the remaining time or the recording position.

    Locking the controls

    To prevent the buttons from being accidentally operated when you carry the recorder, use this function.

    1. Slide HOLD in the direction of the .
      ON the recorder, slide HOLD to lock the controls of the recorder. On the remote controller, slide HOLD to lock the controls of the remote controller.
    2. Slide HOLD in the opposite direction of the arrow to unlock the controls.

    Connecting to a stereo system

    Connect the LINE OUT jack of the recorder to the LINE IN jacks of an amplifier or a tape player with a line cable (RK-G129 or RK-G136, not supplied). The output is analog. The recorder plays the MD digitally and sends analog signals to the connected equipment.

    Note
    The Mega Bass does not function or will be cancelled when the LINE OUT jack is connected with a line cable.

    Editing recorded tracks

    You can edit your recordings by adding/erasing track marks or labeling tracks and MDs. Premastered MDs cannot be edited.

    Notes on editing

    Erasing tracks

    To erase a track

    Note that once a recording has been erased, you cannot retrieve it. Check the track number before erasing.

    1. Press ERASE while playing the track you want to erase.
      "Erase OK?" and "Push Erase" appear in the display alternately, and the recorder plays the selected track repeatedly. Top cancel erasing, press .
    2. Check the track number in the display and press ERASE again. The track is erased from the MD and the remaining tracks are renumbered.

    To erase a part of a track
    Add track marks at the beginning and the end of the part you want to erase, then erase the part.

    To erase the whole disc

    You can quickly erase all the tracks and data of the MD at the same time.
    Note that once a recording has been erased, you cannot retrieve it. Be sure to check the contents of the disc you want to erase.

    1. In stop mode, keep pressing ERASE and slide REC to the right.
      "All Erase?" and " Push Erase" appear in the display alternately. To cancel erasing, press .
    2. Press ERASE again.
      "Toc Edit" flashes in the display. When erasing finishes, "BLANK DISC" appears.

    Adding a track mark

    You can add track marks so that the separated part after the track mark is as a new track.
    The track numbers will increase as follows.

    1. While playing or pausing an MD, press TRACK MARK on the recorder at the point you want to mark.
      "MARK ON" appears in the display, and a track mark is added. The track number will increase by one.

    To add track marks while recording
    Press TRACK MARK on the recorder or the remote commander.

    Note
    TRACK MARK on the remote controller does not function during playback.

    Erasing a track mark

    When you record with analog (line) input, unnecessary track marks may be recorded. You can erase a track mark to combine the tracks before and after the track mark. The track numbers will change as follows.

    The combined track whose mark has been erased is recorded with the date and time of the beginning of the first of the two combined tracks.

    Moving recorded tracks

    You can change the order of the recorded tracks.

    1. While playing, keep pressing and press TITLE/ENTER.
      The recorder plays the selected track repeatedly.
      For example above, "MV003->003" appears in the display.
    2. Rotate the vertical jog dial to select the new track position.
      For example above, rotate the jog dial until "MV003->002" appears in the display.
      To cancel moving, press .
    3. Press TITLE/ENTER again.
      Moving is completed and the recorder plays the moved track.

    You can also move the track by pressing the jog dial in step 3.

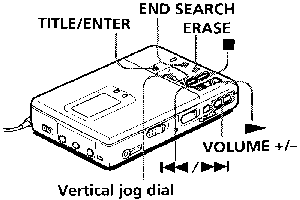

    Labeling recordings

    You can label the MDs and tracks you recorded with letters, numbers, and marks. Each label can be made up of up to 200 characters, and each MD can hold up to 1700 characters.

    1. To label a track, play the track you want to label.
      To label an MD, insert the recordable MD you want to label.
      If an MD is already inserted, press to stop.
    2. Press TITLE/ENTER.
      If you have selected a track in step 1 above, the recorder will play that track repeatedly.
      A cursor flashes in the display.
    3. Use the vertical jog dial to select and enter a character.

    Press To
    Select the first of capital letters, small letters, and numbers quickly.
    / Move the cursor to the left or right.
    END SEARCH Insert a space.
    ERASE Delete a character.
    Cancel labeling.
    1. Repeat step 3 until you have entered all the characters for the label.
    2. Press TITLE/ENTER.
      Labeling is completed.

    To cancel labeling, press .

    Available characters

    To relabel recordings
    Do steps 1 and 2 to display the label of the track or MD. Enter a new character over the on you want to change, then press TITLE/ENTER.

    Notes

    Power sources

    You can use the recorder on house current or as follows.
    In the recorder ...
    - a lithium ion rechargeable battery (supplied)
    With supplied battery case ...
    - dry batteries (not supplied)

    It is preferable to use the recorder on house current when recording for a long time.

    Using on a lithium ion rechargeable battery

    Before using the supplied LIP-12(H) for the first time, charge it in the recorder.

    1. Connect the supplied AC power adaptor.

    1. Insert the LIP-12(H) into the recorder and close the lid.
    2. Battery indication appears in the display and charging starts. When charging is completed, battery indicator disappears.

    Charging time

    To charge a competely discharged battery, it takes the following time

      80%

      Approx. 2.5 hours

      100%

      Approx. 5 hours

    You can use the recorder while charging.

    Notes

    Using on dry batteries

    1. Attach the supplied battery case.

    1. Insert two LR6 (size AA) dry batteries (not supplied).

    Battery life 1)

    Batteries Recording 2) Playback
    LIP-12(H) lithium ion rechargeable battery Approx. 5 hours Approx. 8hours
    Two LR6 (size AA) Sony alkaline dry batteries

    ------- 3)

    Approx. 6.5 hours
    LIP-12(H) + Two LR6 (size AA)

    ------- 3)

    Approx. 15 hours

    1) The battery life may be shorter due to operating conditions and the temperature of the location.
    2) When you record, use a fully charged rechargeable battery.
    3) Recording time may differ according to the alkaline batteries.

    When to replace the batteries
    When the dry batteries or rechargeable battery are weak, flashing battery symbol or "LOW BATT" appear in the display. Replace the dry batteries or charge the rechargeable battery.

    Additional information

    Precautions

    On safety
    Do not put any foreign objects in the DC IN 6V jack.

    On power sources

    On heat build-up
    Heat may build up in the recorder if it is used for an extended period of time. In this case, leave the recorder turned off until it cools down.

    On installation

    On the headphones
    Road safety
    Do not use headphones while driving, cycling, or operating any motorized vehicle. It may create a traffic hazard and is illegal in many areas. It can also be potentially dangerous to play your recorder at high volume while walking, especially at pedestrian crossings. You should exercise extreme caution or discontinue use in potentially hazardous situations.

    Preventing hearing damage
    Avoid using headphones at high volume. Hearing experts advise agains continuous, loud and extended play. If you experience a ringing in your ears, reduce the volume or discontinue use.

    Caring for others
    Keep the volume at at moderate level. This will allow you to hear outside sounds and to be considerate of the people around you.

    On the MiniDisc cartridge

    On cleaning

    Notes on batteries
    Incorrect battery usage may lead to leakage of battery fluid or bursting batteries. To prevent such accidents, observe the following precautions:

    For the customers in Canada

    DISPOSAL OF LITHIUM ION BATTERY

    LITHIUM ION BATTERY.
    DISPOSE OF PROPERLY.
    You can return unwanted lithium ion batteries to your nearest Sony Factory Service Center.
    Note: In some areas the disposal of the lithium ion batteries in household or business trash may be prohibited.

    For the Sony Factory Service Center nearest you call 416-499-SONY (Canada only)

    Caution: Do not handle damaged or leaking lithium ion battery.

    Note on mechanical noise
    The recorder produces out mechanical noise while operating, which is caused by the power-saving system of the recorder and it is not a problem.

    To protect a recorded MD

    To record-protect an MD, slide open the tab at the side of the MD. In this position, the MD cannot be recorded. To record again, slide the tab back so the tab is visible.

    Note on digital recording

    This recorder uses the Serial Copy Mangement System which allows only first-generation digital copies to be made of premastered software. You can only make copies from a home-recorded MD by using the analog (line out) connections.

    If you have any questions or problems concerning your recorder, please consult your nearest Sony dealer.

    Troubleshooting

    Should any problem persists after you have made these checks, consult you nearest Sony dealer.

    Symptom Cause/Solution
    The recorder does not work or works poorly.
    • Audio sources may not be securely connected.
      Disconnect the audio sources once and connect them again (Recording an MD right away!, Recording with digital input).
    • Moisture has condensed in the recorder.
      Take the MD out and leave the recorder in a warm place for several hours until the moisture evaporates.
    • The rechargeable battery or dry batteries are weak. (Battery symbol or "LOW BATT" flashes).
      Charge the rechargeable battery or replace the dry batteries (Using on a lithium ion rechargeable battery, Using on dry batteries).
    • The rechargeable battery or dry batteries have been installed incorrectly.
      Install the batteries correctly (Using on dry batteries).
    • You pressed a button while the disc indication was rotating quickly.
      Wait until the indication rotates slowly.
    • The recording volume is too low.
    • The recording was made using a connecting cord with an attenuator.
      Use a connecting cord without an attenuator (Recording an MD right away!).
    • The AC adaptor was unplugged during recording or a power outage occurred.
    • While operating, the recorder received a mechanical shock, too much static, abnormal power voltage caused by lightning, etc.
      Restart the operation as follows.
      1. Disconnect all the power sources.
      2. Leave the recorder for about 30 seconds.
      3. Connect the power source.
    No sound comes through the headphones.
    • The headphones plug is not firmly connected.
      Connect the headphones with a remote controller plug firmly to headphone/REMOTE.
    • Volume is too low.
      Adjust the volume by pressing VOLUME +/- (VOL +/- on the remote controller).
    • AVLS is on .
      Slide AVLS to NORMAL (Protecting your hearing(AVLS))
    An MD is not played from the first track.
    • Disc playing stopped before it came to the last track.
      Press repeatedly or open and close the lid once to go back to the beginning of the disc, and restart playing after checking the track number in the display.
    Playback sound skips.
    • The recorder is placed where it receives continuous vibrations.
      Put the recorder on a stable place.
    • A very short track may cause sound to skip.
    Sound has a lot of static.
    • Strong magnetism from a television or such device is interfering with operation.
      Move away from the source of strong magnetism.
    Cannot find the track marks.
    • You pressed after pressing or .
      You pressed after pressing or .
    Charging the rechargeable battery does not start.
    • The rechargeable battery has been inserted incorrectly or the AC power adaptor has been connected incorrectly.
      Insert the battery correctly or connect the AC power adaptor correctly.
    The clock loses time or the display flashes.
    The recording date was not stamped onto the disc.
    • The built-in battery for a clock is weak
      Connect the AC power adaptor to DC IN 6 on the recorder and the wall outlet to charge the built-in battery. After charging, set the clock again. Note that the clock normally loses about 2 minutes per month (Setting the clock to stamp the recorded time)


    System limitations

    The recording system in your MiniDisc recorder is radically different from those used in cassette and DAT decks and is characterized by the limitations described below. Note, however, that these limitations are due to the inherent nature of the MD recording system itself and not to mechanical causes.

    Symptom Cause
    "TR FULL" appears even before the disc has reached the maximum recording time (60 or 74 minutes). When 254 tracks have been recorded on the disc, "TR FULL" appears regardless of the total recorded time. More than 254 tracks cannot be recorded on the disc. To continue recording, erase unnecessary tracks.
    "TR FULL" appears even before the disc has reached the maximum track number or recording time. Repeating recording and erasing may cause fragmentation and scattering of data. Although those scattered data can be read, each fragment is counted as a track. In this case, the number of tracks may reach 254 and further recording is not possible. To continue recording, erase unnecessary tracks.
    Track marks cannot be erased. When the data of a track is fragmented, the track mark of a fragment under 12 seconds long cannot be erased.
    The remaining recording time does not increase even after erasing numerous short tracks. Tracks of under 12 seconds in length are not counted and so erasing them may not lead to an increase in the recording time.
    The total recorded time and the remaining time on the disc may not total the maximum recording time (60 or 74 minutes). Recording is done in minimum units of 2 seconds each, no matter how short the material. Even if the last unit of recording is less than 2 seconds, it is counted as a unit of 2 seconds. Then 2 seconds´ space is put before recording starts again to prevent the last unit of the previous track from being erased. The contents recorded may thus be shorter than the maximum recording capacity.
    The edited tracks may exhibit sound drop out during search operations. The fragmentation of data may cause sound dropout while searching because the tracks are played in higher speed than normal playback.


    Error messages

    If the following error messages flash in the display window, check the chart below.

    Error message Meaning/Remedy
    BLANKDISC
    • An MD with no recording on it is inserted.
      Insert a recorded MD.
    DISC ERR
    • The recorder cannot read the disc (it´s scratchy or dirty).
      Reinsert or replace the disc.
    DISC FULL
    • There is no more space to record on the disc (less than 12 seconds available).
      Replace the disc.
    BUSY
    • You tried to operate the recorder while it was accessing the recorded data.
      Wait until the message goes out (in rare cases, it may take 2.3 minutes).
    NAME FULL
    • You tried to enter more than 200 characters for a track or disc name or the total characters entered in an MD is more than 1700.
      Enter the characters within the limit.
    Hi DC in
    • Power supply is too high (The supplied AC power adaptor or the recommended car battery cord is not used).
      Use the supplied AC power adaptor or the recommended car battery cord.
    HOLD
    • The recorder is locked.
      Slide HOLD agains the allow to unlick the recorder (Locking the controls).
    LOW BATT
    MEM OVER
    • You tried to record when there is no indication in the display, and the recorder is placed where it receives continuous vibration.
      Put the recorder on the stable place, and start recording again.
    NO COPY
    • You tried to make a copy from a disc that is protected by the Serial Copy Management System. You cannot make copies from a digitally connected source which was itself recorded using the digital connection.
      Use the analog connection instead (Recording an MD right away!)
    NO DISC
    • You tried to play or record with no disc in the recorder.
      Insert an MD.
    NO SIGNAL
    • The recorder could not detect digital input signals.
      Make sure that the source is connected firmly (Recording with digital input)
    • If the error message appears while recording, press to stop recording.
    PB ONLY
    • You tried to record or edit on a premastered MD (PB means playback.)
      Insert a recordable MD.
    PROTECTED
    • You tried to record or edit on a MD with the tab in the record-protect position
      Slide the tab back (To protect a recorded MD)
    SORRY
    • You tried to erase a track mark while playing he MD or at the beginning of the first track.
    • You tried to erase a track mark to combine tracks the recorder cannot combine. (caused by system limitation)
    TEMP OVER
    • Heat has built up in the recorder.
      Let the recorder cool down.
    TR FULL
    • There is no more space for new data when you are editing the MD
      Erase unnecessary tracks (Editing recorded tracks)
    TrPROTECT
    • You tried to record or edit on a track that is protected from erasing.
      Record or edit on other tracks.


    Specifications

    System
    Audio playing system
    MiniDisc digital audio system
    Laser diode properties
    Material: GaAlAs
    Wavelength: lambda=780 nm
    Emission duration: continuous
    Laser Output: less than 44.6 uW (this output is the value measured at a distance of 200 mm from the lens surface on the optical pick-up block.)
    Recording and playback time
    Maximum 74 minutes (MDW-74, stereo recording)
    Maximum 148 minutes (MDW-74, monaural recording)
    Revolutions
    400rpm to 900rpm (CLV)
    Error correction
    Advanced Cross Interleave Reed Solomon Code (ACIRC)
    Sampling frequency
    44.1kHz
    Sampling rate converter
    Input: 33kHz/44.1kHz/48kHz
    Coding
    Adaptive TRansform Acoustic Coding (ATRAC)
    Modulation system
    EFM (Eight to Fourteen Modulation)
    Number of channels
    2 stereo channels
    1 monaural channel
    Frequency response
    20 to 20000 Hz +- 3dB
    Wow and Flutter
    Below measurable limit
    Inputs
    Microphone: stereo mini-jack, 0.22 - 0.78 mV
    Line in: stereo mini-jack, 69 - 194 mV
    Optical(Digital) in: optical (digital) mini-jack
    Outputs:
    Headphones: stereo mini-jack, maximum output level 5mW + 5mW, load impedance 16 Ohm
    Line out: stereo mini-jack, 194mV, load impedance 10 kOhm
    General
    Power requirements
    Sony AC Power Adaptor (supplied) connected at the DC IN 6V jack:
    220-230V AC, 50/60 Hz (European model)
    120V AC, 60 Hz (Canadian model)
    100-240V AC, 50/60 Hz (Other models)
    Lithium ion rechargeable battery LIP-12(H) (supplied)
    Two LR6 (size AA) alkaline batteries (not supplied)
    Battery operation time
    See "Battery life" (Power sources)
    Dimensions
    Approx. 116,5x26x78 mm (w/h/d)
    (4 5/8 x 1 1/16 x 3 1/8 in.)
    Mass
    Approx. 220g (7.1 oz) the recorder only
    Approx 317g (10.2 oz) incl. a recordable MD, headphones with a remote controller, and LIP-12 lithium ion rechargeable battery
    Supplied accessories
    AC power adaptor (1)
    Headphones with a remote controller (1)
    LIP-12(H) lithium ion rechargeable battery (1)
    Ear pads (2)
    Carrying case (1)
    Dry battery case (1)
    Optional accessories
    Lithium ion rechargeable battery LIP-12
    Micro plug adaptor (Stereo mini plug -> Micro plug) PC-MP1HG
    Optical Cable:
    POC-151HG, POC-152HG, POC-MZ1, POC-MZ2, POC-15B, POC-15AB, POC-DA12S
    Line Cable RK-G129, RK-G136
    Car Connecting Pack CPA-9
    Car Battery Cord DCC-E260
    Stereo Microphones ECM-MS907, ECM-909A, ECM-717
    Stereo Headphones MDR-D77, MDR-D55
    Active Speakers SRS-A41, SRS-A91
    Recordable MDs MDW-74/74A, MDW-74L/74R/74Y, MDW-60/60A
    MiniDisc Carrying Case CK-MD4
    MiniDisc Filing Box CK-MD10

    Your dealer may not handle some of the above listed accessories. Please ask the dealer for detailed information about the accessories in your country.

    US and foreign patents licensed from Dolby Laboratories Licensing Corporation.

    Design and specifications are subject to change without notice.


    What is MD?

    How MiniDisc works
    MiniDisc (MD) comes in two types: premastered (prerecorded) and recordable (blank). Premastered MDs, recorded at music studios, can be played back almost endlessly. However, they can´t be recorded on or over like cassette tapes. To record, you must use a "recordable MD".
    Recordable MDs
    Recordable MDs, which use magneto-optical (MO) technology, can be recorded again an again. The laser inside the recorder applies heat to the MD, demagnetizing the magnetic layer of the MD. The recorder then applies a magnetic field to the layer. This magnetic field corresponds exactly to the audio signals generated by the connected source. (The north and south polarities equate to digital "1" and "0".) The demagnetized MD adopts the polarity of the magnetic field, resulting in a recorded MD.
    How the MiniDisc got so small
    The 2.5 inch MiniDisc, encased in a plastic cartridge that looks like a 3.5 inch diskette, uses a new digital audio compression technology called ATRAC (Adaptive TRansformation Acoustic Coding). To store more sound in less space, ATRAC extracts and encodes only those frequency components actually audible to the human ear.
    Premastered MDs
    Premastered MDs are recorded and played like regular CDs. A laser beam focuses on the pits in the surface of the MD and reflects the information back to the lens in the recorder. The recorder then decodes the signals and plays them back as music.
    Quick Random Access
    Like CDs, MDs offer instantaneous random access to the beginning of any music track. Premastered MDs are recorded with location addresses corresponding to each music selection. Recordable MDs are manufactured with a "User TOC Area" to contain the order of the music. The TOC system is similar to the "directory management system" of floppy disks. In other words, starting and ending addresses for all music tracks recorded on the disc are stored in this area. This lets you randomly access the beginning of any track as soon as you enter the track number (AMS), as well as label the location with a track name as you would a file on a diskette.
    Shock-Resistant Memory
    One major drawback of optical read systems is that they can skip or mute when subjected to vibration. The MD system resolves this problem by using a buffer memory that stores audio data.


    Looking at the controls

    The recorder

    1. TITLE/ENTER button (Labeling records)
    2. Battery compartment (on the bottom) (Using on a lithium ion rechargeable battery)
    3. MODE button (Playing tracks repeatedly)
    4. DISPLAY button (Checking the remaining time or the recording position, Checking the remaining time or the playing position)
    5. MIC SENS switch (on the bottom) (Recording from a microphone)
    6. AVLS switch (on the bottom) (Protecting your hearing(AVLS))
    7. DC IN 6V jack (at the rear) (Recording an MD right away!)
    8. Display window (Checking the remaining time or the recording position, Checking the remaining time or the playing position)
    9. SYNCHRO REC (synchro-recording) switch (To start/stop recording with the player)
    10. MIC (PLUG IN POWER) jack (Recording from a microphone)
    11. LINE IN (OPTICAL) jack (Recording an MD right away!, Recording with digital input)
    12. LINE OUT jack (Connecting to a stereo system)
    13. DIGITAL MEGA BASS button (Emphasizing bass(DIGITAL MEGA BASS))
    1. headphone/REMOTE jack (Playing an MD right away!)
    2. Vertical jog dial (Selecting the track number or track name directly, Moving recorded tracks)
    3. TRACK MARK button (Adding a track mark)
    4. END SEARCH button (Recording an MD right away!)
    5. ERASE button (Editing recorded tracks)
    6. /(search/AMS) button (Recording an MD right away!, Playing an MD right away!)
    7. (play) button (Recording an MD right away!, Playing an MD right away!)
    8. (stop) button (Recording an MD right away!, Playing an MD right away!)
    9. VOLUME +/- button (Playing an MD right away!)
    10. HOLD switch (Locking the controls)
    11. REC (record) switch (Recording an MD right away!)
    12. (stop) button Recording an MD right away!, Playing an MD right away!)
    13. OPEN button (Recording an MD right away!)
    14. CLOCK SET button (on the bottom) (Setting the clock to stamp the recorded time)

    The display window

    1. Position indicator (Checking the remaining time or the recording position, Checking the remaining time or the playing position)
      Shows the current location on the MD. The point under recording or playing flashes. The recorded portion light up.
    2. MONO (monaural) indication
    3. Play mode indication
      Shows the play mode of the MD
    4. Disc indication
      Shows that the disc is rotating for recording, playing or editing an MD.
    5. SYNC (synchro-recording) indication
    6. REC indication (Recording an MD right away!)
      Lights up while recording. When flashing, the recorder is in record standby mode.
    7. Level meter
      Shows the volume of the MD being played or recorded.
    8. AM/PM indication (Setting the clock to stamp the recorded time)
      Lights up along with the time indication in the 12-hour system
    1. Mega bass indication (Emphasizing bass(DIGITAL MEGA BASS))
    2. Battery indication (Power sources)
      Shows battery condition.
    3. REMAIN (remaining time/tracks) indication (Checking the remaining time or the recording position, Checking the remaining time or the playing position)
      Lights up along with the remaining time of the track, the remaining time of the MD, or the remaining number of tracks.
    4. REC DATE (recorded/current date) indication
      Lights up along with the date and time the MD was recorded. When only "DATE" lights up, the current date and time are displayed.
    5. Time display (Checking the remaining time or the recording position, Checking the remaining time or the playing position, Setting the clock to stamp the recorded time)
      Shows the recorded time, current time, elapsed time of the track or MD being recorded or played.
    6. Character information display (Checking the remaining time or the recording position, Checking the remaining time or the playing position)
      Displays the disc and track names, date, error messages, track numbers, etc.

    The headphones with a remote control

    1. Headphones
      Can be replaced with optional headphones
    2. VOL(volume) +/- buttons (Playing an MD right away!)
    3. (play)//(search/AMS) buttons
      Press to play. While playing, press the side to find beginning of the current or preceding tracks or to search backward, or press side to find the beginning of the succeeding tracks or to search forward.
    1. TRACK MARK button (Adding a track mark)
    2. (stop) button (Recording an MD right away!, Playing an MD right away!)
    3. HOLD switch (Locking the controls)
      Slide to lock the controls of the remote controller.
    4. (stop) button Recording an MD right away!, Playing an MD right away!)

    Return to the Mini Disc Home Page.
