< feature >
| 1. |
MD headphone player of thin size by which
circle (circle) design is adopted |
|
| ･ |

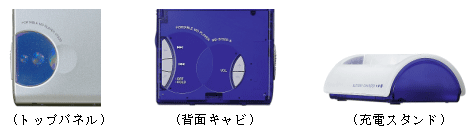

The accent was installed by the coloring to consider
"Candy" in both sides of the main body (top panel and
back (*kyabi*)) and the charge stands, and circle
(circle) design was adopted for of each.
 |
| ･ |
A round pattern of a top panel was (*kirakira*)ed
and shone, and was made a decoration panel by the
mixture and the hologram processing of the glass flakes
according to the seen angle. |
| ･ |
The color variation of four colors of the blue pink
orange white which was able to be chosen to be a favor
additionally was prepared.
|
| ･ |
A top panel made of aluminum was adopted, and a thin
size of 14.6mm was achieved.
| |
| 2. |
The +/- power supply audio circuit which
sticks to the quality of the sound is adopted.
|
|
| ･ |
To stabilize the power supply which was basic of the
amplifier circuit high pitched sound quality making,
"+/- the power supply audio circuit" installed in the
component etc. was adopted. The high pitched sound
quality reproduction became possible by having abolished
this though "Output capacitor" by which the frequency
characteristic etc. were negatively affected was
necessary in "Single power supply method" by which the
power supply circuit was simplified. |
| ･ |
X-BASS of a digital method can be adopted, only
digital be enjoyed, and a heavy bass with power be
enjoyed. | |
| 3. |
In using of the charge pond and one high
capacity AA alkali dry battery, together, for about 155
hoursThe reproduction of - for a long time is
achieved. |
|
| ･ |
It is possible to reproduce for long time of about
155 hours by using together about the nickel hydrogen
charge pond and 1 high capacity AA alkali dry battery.
Moreover, the reproduction of about 95 hours was
achieved for about 55 hours in one high capacity AA
alkali dry battery on one charge pond (Both at the LP4
mode). | |
| 4. |
It is easy to see and is "Liquid crystal
remote control. " with a comprehensible backing
light |
|
| ･ |
Liquid crystal remote control which grasped easily
by a slim design and was easy to operate was adopted.
|
| ･ |
The key only for GROUP is adopted, and setting the
group reproduction and the group which wants to
reproduce can select it easily. |
| ･ |
The display can be easily confirmed because the
backing light addition even by a dark point.
| |
| 5. |
"Charge stand" which can be easily
charged by portable telephone sense |
|
| ･ |
*** It was easily <charge stand of small size
which was able to be charged> attached only by
putting the main body in the portable telephone sense.
|
| ･ |
A fashionable charge stand in the main body color
where the color was coordinated.
| |
| 6. |
Only the tune of the favorite is
installed and abundant reproduction functions such as
"Favorite reproduction" that registration & can reproduce
are installed. |
|
| ･ |
Tunes of the favorite of each disk were specified up
to ten, and "Favorite reproduction" function that the
reproduction only of the tune was able to be enjoyed
anytime was installed. It is possible to specify easily
while reproducing the tune, and disks up to ten can be
registered as "Favorite disk". An automatic reproduction
of a favorite tune can be started only by inserting the
disk. |
| ･ |
The tune of the favorite can be quickly retrieved
from the disk recorded for a long time in the LP mode by
"Introduction reproduction" function to reproduce each
tune automatically by about nine seconds. Moreover, a
convenient reproduction random to reproduce, random to
repeat, all tunes to reproduce the repetition one can be
had to be enjoyed.
| |
| 7. |
"MDLP Nabis" where LED shines according
to kind of recording mode |
|
| ･ |
In the blinking frequency of LED which shines in
orange,;
再生中の曲がどの録音モードか一目で確認できます(SP/モノラル長時間モードで録音された曲では｢1回点滅の連続｣,LP2モードの曲では｢2回点滅の連続｣,LP4モードの曲では｢4回点滅の連続｣で点滅)｡;
Moreover, LED blinks by various patterns according to
the content of the operation besides lighting when
charging it, and the operation situation is produced
fashionable.
| |
| 8. |
"MDLP group mode" which each group can
reproduce from one mini-disc |
|
| ･ |
Each group can be quickly reproduced by selecting
the group of the favor from the mini-disc recorded by
"MDLP group mode" (The disk to which the group was set
is used). | |
| 9. |
The (*wantatchiijekt*) mechanism with an
easy disk change is installed. |
|
| ･ |
Because the lid opens when the opening button is
done in the slide and the disk comes out automatically,
the disk change can be smoothly done.
| |
| 10. |
Strength in vibration from the outside,
and "音飛び(unknown word) guard memory" of about maximum 160
second (At the LP4 mode). |
|
| ･ |
Music can be pleasantly enjoyed without doing sound
飛び for about the maximum 160 seconds at the LP4 mode
even if intermitted vibration is received by installing
of 16 Mbits DRAM.
| |
Specification > of < MD-ST500
| Name of articles |
MD headphone player |
| Shape name |
MD-ST500
-A (blue system) /- P (pink system) /- D
(orange system) /- W (white system) |
| Form |
Mini-disc digital audio system |
| Reading method |
Non-contact optics reading method (semiconductor laser
use) |
| Number of channels |
Stereo two channels/monaural (mode for a long time) one
channel |
Sampling
Frequency |
44.1kHz |
| Voice compression method |
ATRAC3/ATRAC(Adaptive TRansform Acoustic Coding) |
| Frequency characteristic |
20〜20,000Hz(±3dB) |
| (*wau*) (*furattah*) |
*** As follows <measurement limit
(±0.001%W.PEAK)> |
| Output terminal |
Headphone/remote control terminal using combinedly |
| Practical, maximum output |
5mW+5mW(32Ω) |
| Power supply |
| DC1.2V: |
Attached nickel hydrogen charge pond
(AD-N55BT) |
| DC1.5V: |
Attached dry battery case (AA on the market type
alkali dry battery 1.5V×1) |
| DC1.5V: |
Optional car power supply adaptor
(AD-CA55X)
(DC12V/24V minus earth car exclusive
use)
(optional plug adaptor (AD-S55PA) using
together) |
| DC5.0V: |
Attachment AC adaptor (100V AC,50/60Hz)
(attached
charge stand using together) | |
| Battery duration |
| Continuous use time |
Stereo |
LP2 stereo |
LP4 stereo |
| Attached charge pond (full charge) |
For about 31 hours |
For about 43 hours |
For about 55 hours |
| One (The charge pond is stored). high the capacity
on the market AA type alkali dry battery |
For about 48 hours |
For about 70 hours |
For about 95 hours |
| One height capacity on the market AA type alkali dry
battery + attached charge pond (full charge) |
For about 90 hours |
For about 120 hours |
For about 155 hours |
| ● |
Setting the display lamp : at “LIGHToff". |
| ● |
Setting the volume level : at “VOL15".
| |
| Charge time |
For about 3.5 hours (The charge stand is used) |
| Externals size |
80.0 (depth)75.2 (width)×14.6 (height)× mm |
| Mass |
About 102g(The charge pond contains it) about 77g(Only the
main body :). |
| Attached goods |
- Liquid crystal remote control ×1
- Headphone
×1
- Nickel hydrogen charge pond ×1
(with in the
case of charge pond)
- AC adaptor ×1 |
|
- AA dry battery case ×1
- Charge stand ×1
-
(*kyaringukeis*) ×1
- Manual ×1
(with guarantee
book) | |
Another goods for sale > for < MD-ST500
| - Nickel hydrogen charge pond |
|
AD-N55BT |
|
Hope retail price 2,200 yen |
|
[It] is putting it on the market. |
| - AC adaptor |
|
AD-SS70AP |
|
Hope retail price 5,000 yen |
|
[It] is putting it on the market. |
| [ For world wide (100-240V) ] |
| - Car power supply adaptor |
|
AD-CA55X |
|
Hope retail price 3,800 yen |
|
[It] is putting it on the market. |
(for 12V/24V car)
- [It] uses it by using
together with plug adaptor AD-S55PA. |
| - Plug adaptor |
|
AD-S55PA |
|
Hope retail price 1,500 yen |
|
[It] is putting it on the market. |
| - [It] uses it by using together with car power
supply adaptor AD-CA55X. |
| - Stereo headphone |
|
HP-MD70 |
|
Hope retail price 3,500 yen |
|
[It] is putting it on the market.
| |
